Professional 1/4" to 3/4" Copper Pipe Flaring Tool Kit - 45° Eccentric HVAC Flare Tool with Pipe Cutter & Deburring Tool for Copper, Brass & Aluminum Pipes - Perfect for Refrigeration, AC Repair & Plumbing Projects

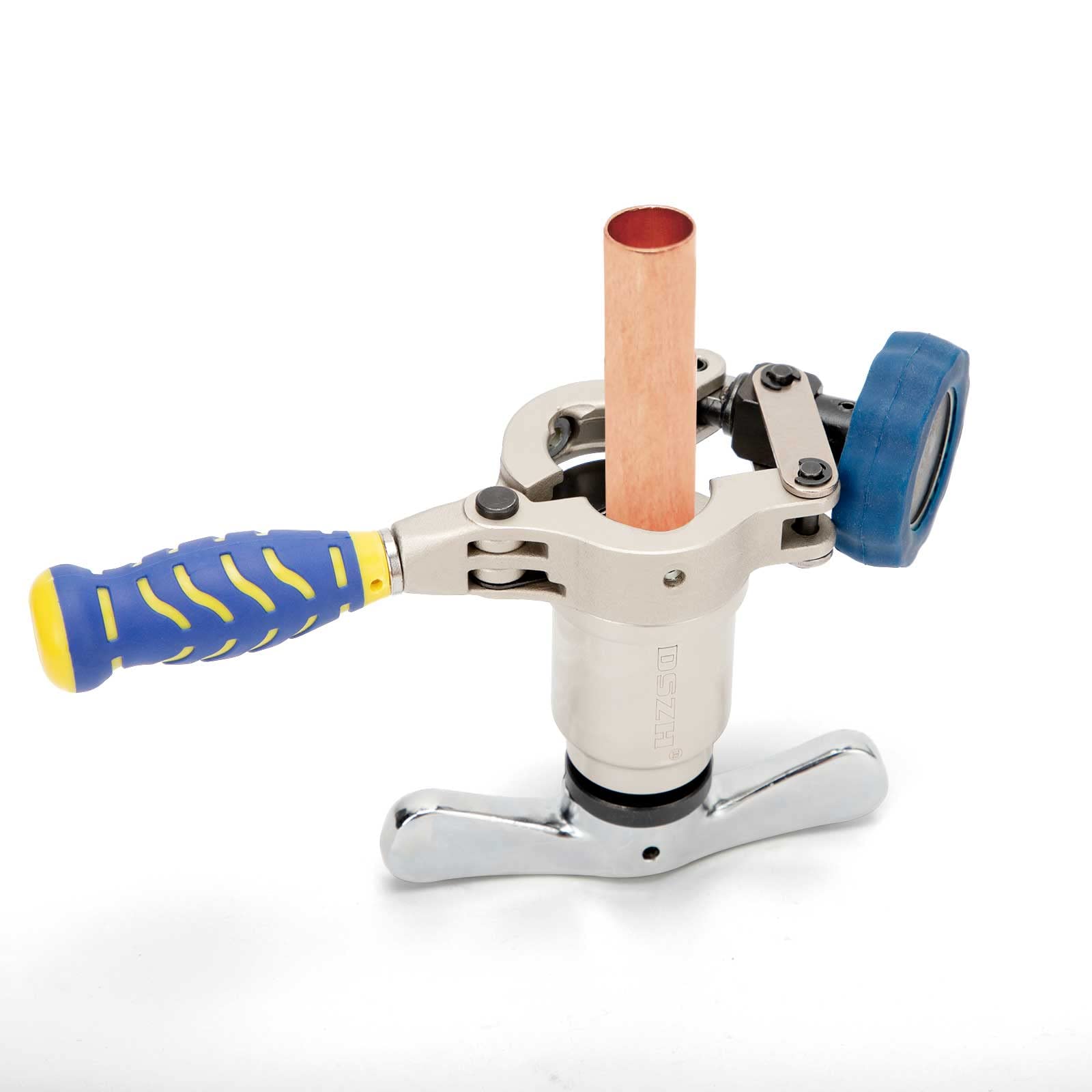

1.Cutting tubes. 2.Remove burrs. 3.Put a nut on tubes. 4.Rotate clamp wheel and handle in anticlockwise,then push to open clamp. 5.When install or change a clamp liner,use finger to dig them out from liner holder and then install the clamp liners you need, notice insert the pin on clamp liner in clamp liner holder,insert tube between clamp liners until the tube touch the stop plate. 6.Pull back the clamp wheel and tighten it in clockwise,be aware of injure of stop place when rotate clamp wheel. 7.Rotate handle in clockwise,eccentric cone will move forward and make flare little by little.Keep ratating the handle 2-3 round after clutch is seperated will make the flare more smooth and perfect. 8.Flare working finished,remove away th tube. 9.Falring work finished,connect nut to connector. Tube Cutter The copper tube cutter is made of aluminum alloy, wear-resistant. It will never get rust.And can be used to cut copper pipe, aluminum pipe and thin stainless steel tube.You can adjust the width to accommodate 6-50mm(1/4 to 2") tubes. Easy to rotate and can precisely cut tubes effortlessly. Deburring Tool The deburring tool is made of sturdy plastic construction and high-speed steel blades. It can deliver quick, clean and easy inside diameter reaming of different tubes (e.g. copper, aluminum, PVC and stainless steel tubes). Eccentric Cone The eccentric design makeks the flaring more precise and efficient. Stopper Plate Stopper Plate design to ensure the tubing is inserted to the exact same depth every time, thus eliminating the guesswork necessary with the old fashioned flaring tool. 8pcs Dies Our Tubing eccentric flaring tool kit comes with 8pcs dies cover the range of tubing sizes nearly every technician needs O.D.: Φ1/4", 5/16", 3/8", 1/2", 5/8", 3/4"(Φ6/9/10/12/16/19mm). Package includes 1x Flaring Tool 8x Dies 1x Tube Cutter 1x Deburring Tool 1x Suitcase 1x Manual Book.

The accuracy eccentric cone flaring tool produces 45 Degree flares in soft copper, brass, aluminum or stainless steel pipes. Widely used in HVAC, air conditioners, air heaters, refrigerators maintenance, etc.

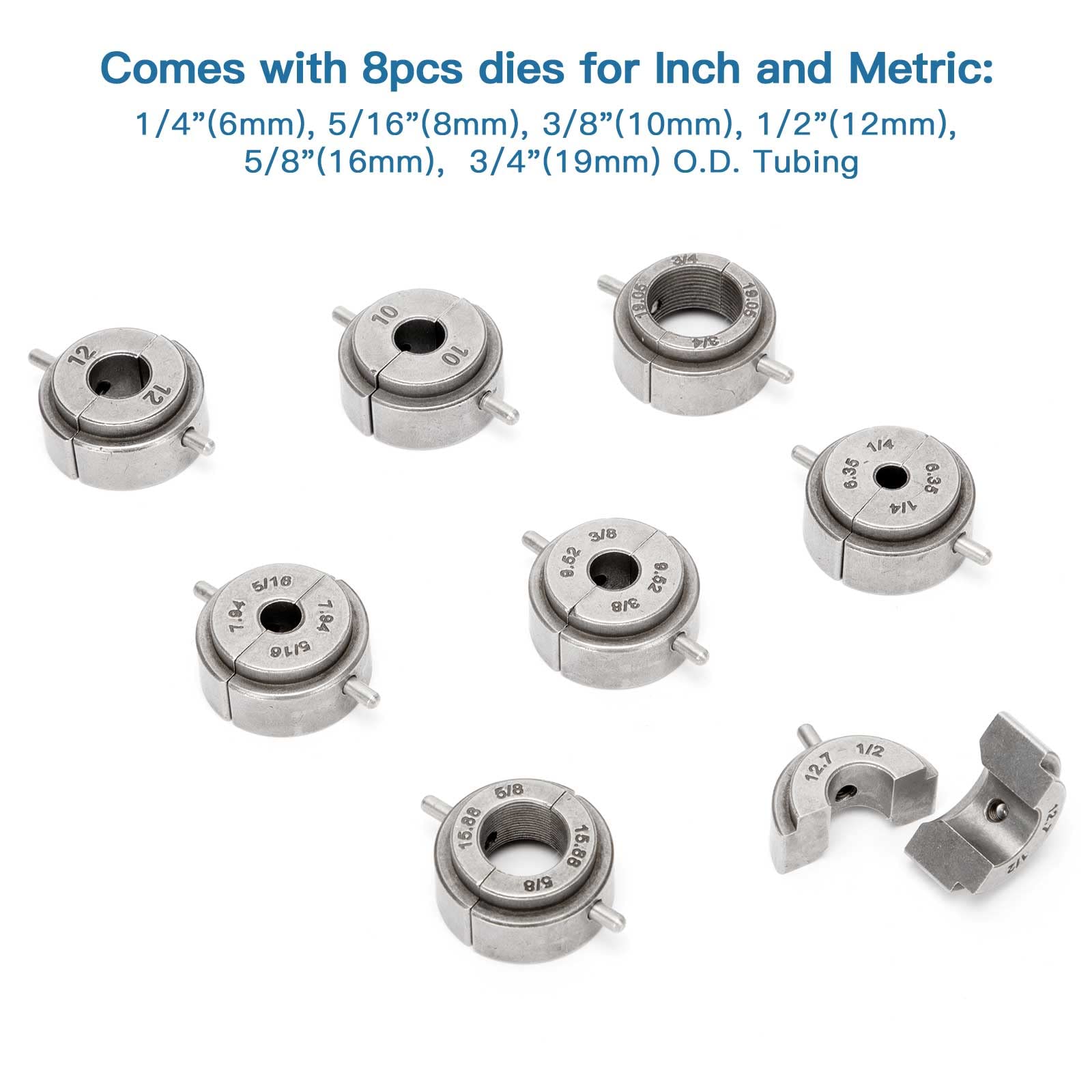

Our Tubing eccentric flaring tool kit comes with 8pcs dies cover the range of tubing sizes nearly every technician needs O.D. Φ1/4", 5/16", 3/8", 1/2", 5/8", 3/4"(Φ6/9/10/12/16/19mm).

This design includes a swing-away stop to ensure the tubing is inserted to the exact same depth every time, thus eliminating the guesswork necessary with the old fashioned flaring tool.

Our eccentric cone type flaring tool adopt a simple and reasonable structure,easy center positioning, convenient operation,high accuracy processing,high efficiency,one-piece structure.

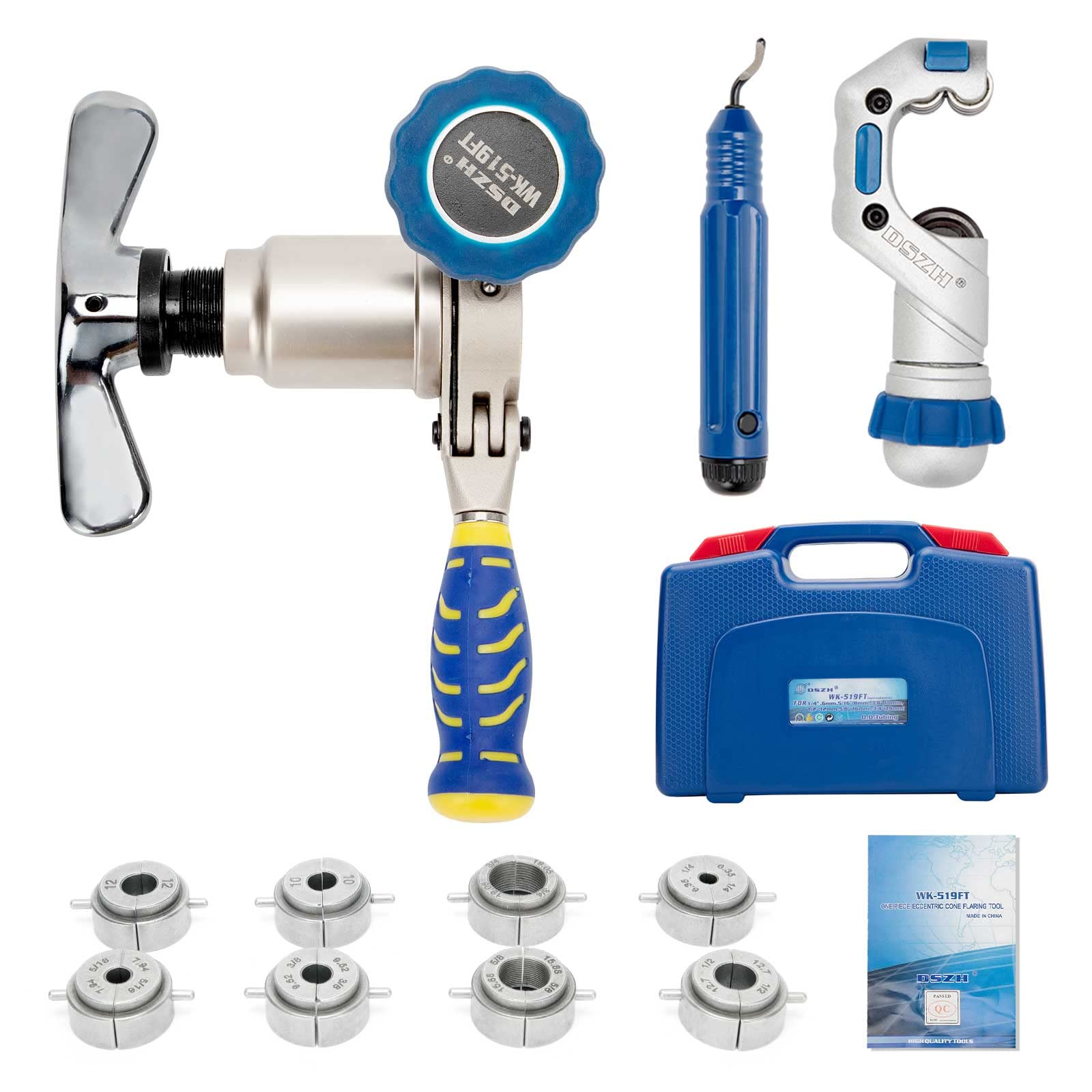

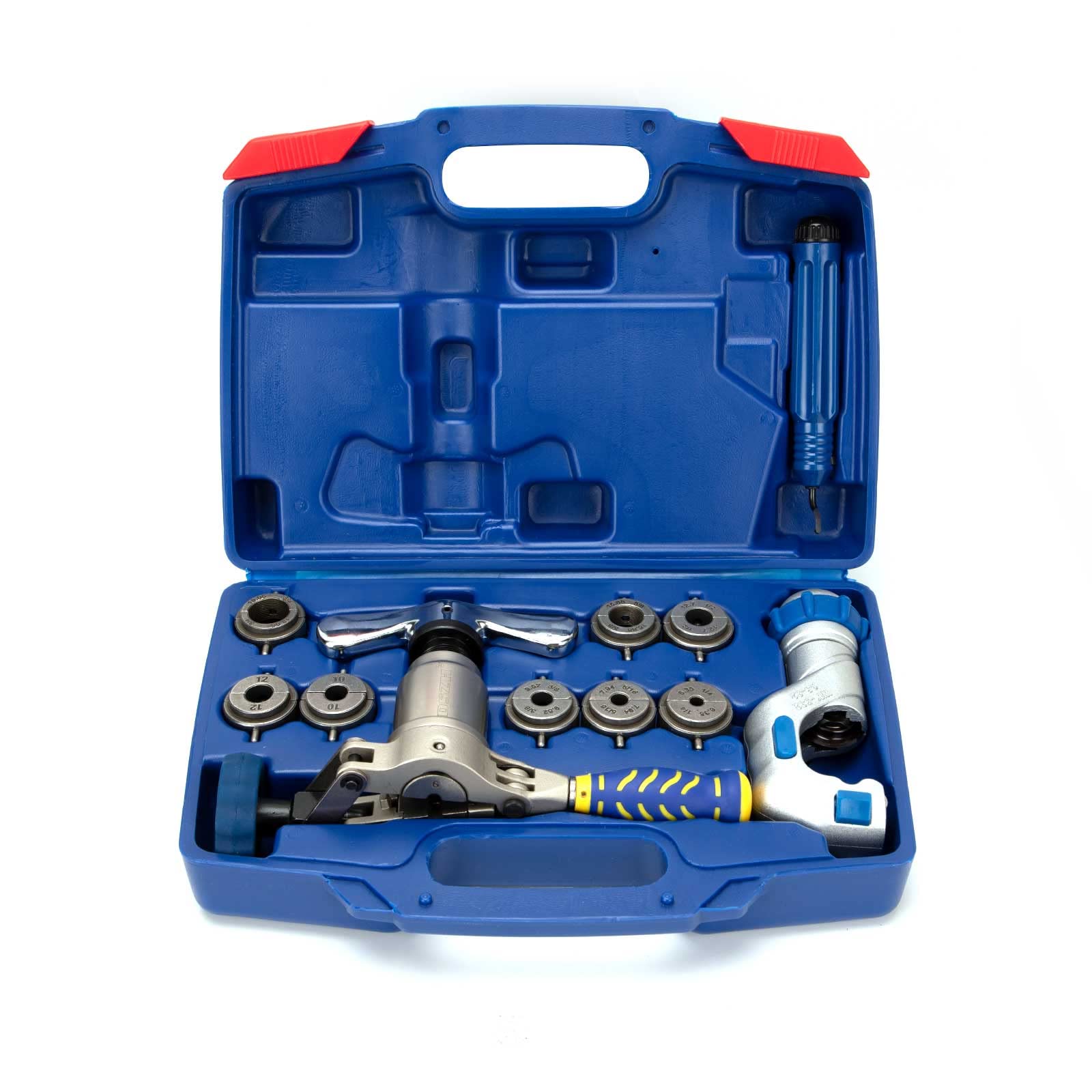

Package includes 1x Flaring Tool,8x Dies,1x Tube Cutter, 1x Deburring Tool,1x Suitcase,1x Manual Book.
